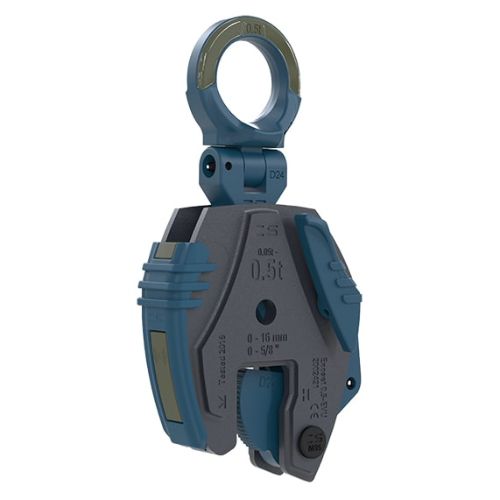

Picture of Spanset® 1/2 Tonne Exoset® Safety Lifting Clamps for Hardox - 0.5T
Picture of Spanset® 1/2 Tonne Exoset® Safety Lifting Clamps for Hardox - 0.5T
Picture of Spanset® 1/2 Tonne Exoset® Safety Lifting Clamps for Hardox - 0.5T

Spanset® 1/2 Tonne Exoset® Safety Lifting Clamps for Hardox - 0.5T

Item ID: VULEVU-0.5H
In stock
$1,994.93 CAD
If you have a MacMor account, sign in or register to shop using your account pricing. Your price may be different from the one displayed.
UoM: EACH
Product Description

  • Individually Proof Tested to 2x the Working Load Limit with certification
  • Breaking Load Limit of 6x Working Load Limit (WLL)
  • Minimum WLL needed is 10% of maximum WLL
  • Temperature range -40°C/+100°C
  • ASME BTH-1 Design category C (Design Factor of 6:1) & Service Class 4 (Over 2,000,000 load cycles)
  • Regular Clamp For use with materials with a surface hardness up to 364 HV, tensile strength 1200 N/mm2.
  • EVU-H for vertical lifting, transporting and turning of all steel plates with a maximum hardness of 473 HV, tensile strength 1550N/mm2. (for example, Hardox 400 and 500).
Product Specifications
A39mm
B226mm
C134mm
D40mm
E41mm
F22mm
G114mm
H13mm
Weight (Lbs)4.190
WLL (Metric Tons)1/2
Jaw Opening0mm - 16mm
ManufacturerVulcan Hoist Company Ltd.
