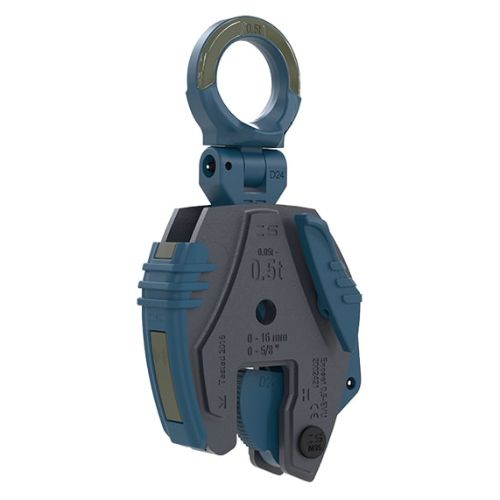

Spanset® Exoset® Safety Lifting Clamps for Hardox

Individually Proof Tested to 2x the Working Load Limit with certification
Breaking Load Limit of 6x Working Load Limit (WLL)
Minimum WLL needed is 10% of maximum WLL
Temperature range -40°C/+100°C
ASME BTH-1 Design category C (Design Factor of 6:1) & Service Class 4 (Over 2,000,000 load cycles)
Regular Clamp For use with materials with a surface hardness up to 364 HV, tensile strength 1200 N/mm2.
EVU-H for vertical lifting, transporting and turning of all steel plates with a maximum hardness of 473 HV, tensile strength 1550N/mm2. (for example, Hardox 400 and 500).

Product List

Item ID	Weight (Lbs)	WLL (Metric Tons)	Jaw Opening		Stock Info	Quantity	UoM	Price
VULEVU-0.5H	4.190	1/2	0mm - 16mm	More Info	In stock Phasing Out: Limited quantities available. Contact us for details.	Qty:	EACH	$1,442.45 CAD If you have a MacMor account, sign in or register to shop using your account pricing. Your price may be different from the one displayed.
VULEVU-1H	4.630	1	0mm - 20mm	More Info	In stock Phasing Out: Limited quantities available. Contact us for details.	Qty:	EACH	$1,950.70 CAD If you have a MacMor account, sign in or register to shop using your account pricing. Your price may be different from the one displayed.
